# Agent Installation

## Overview

This page explains the steps required to set up an agent server for use in Highlight. It should be read in conjunction with the page [creating a new agent in Highlight](https://help.highlight.net/admin/agents#create_new_agent). There is no charge for the agent server software, which is installed on your own hardware.

***

## Installation Summary

There are four steps to install and make live a Highlight agent.

{% stepper %}
{% step %}
**Identify a suitable location for the server, and provision it** (server can be virtual).

Check the [system requirements](https://help.highlight.net/functionality/server-specs#server-specification) for a new server, which will depend on its role.

{% hint style="info" %}
**Notes:**

* .NET 4.8 is required to be installed.
* Time must be configured from an NTP server, to ensure the server keeps in sync with Highlight.
* Wireshark installation (the Tshark module as a minimum) is recommended for troubleshooting purposes.
  {% endhint %}
  {% endstep %}

{% step %}
**Make firewall changes** to allow appropriate access to and from the agent.

The changes required are summarised in the [network access requirements](https://help.highlight.net/functionality/server-specs#network-access-requirements) section.
{% endstep %}

{% step %}
**Follow the steps for** [**creating a new agent**](https://help.highlight.net/admin/agents#create_new_agent) in Highlight, which will require Highlight Admin access.
{% endstep %}

{% step %}
[**Download the latest copy**](https://support.highlight.net/downloads/HighlightAgentSetup.zip) of the Highlight Agent server software, install it on the server, and activate it.

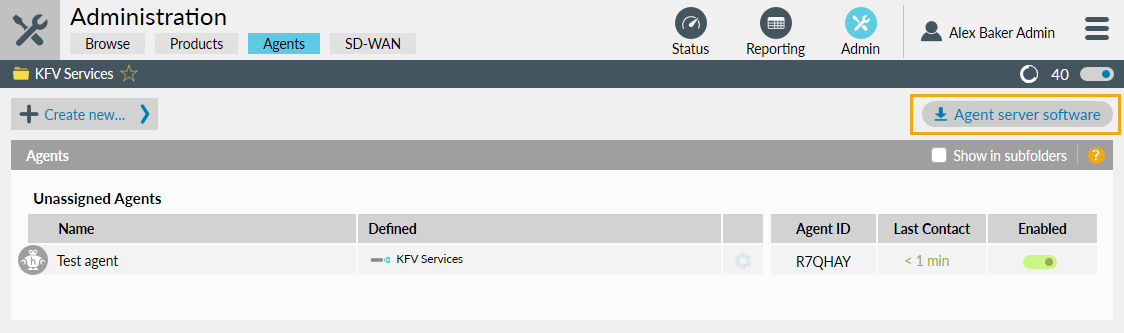

The software is also available from the Admin Agents page, as shown below:

![Download option for Agent software](https://content.gitbook.com/content/68Wb63XzG9guH74bkPEb/blobs/KCZe6rbitFHQlbxhd4Sd/agent_software_download.png)
{% endstep %}
{% endstepper %}

***

## Server Location and Provisioning

![Highlight architecture private network](https://content.gitbook.com/content/68Wb63XzG9guH74bkPEb/blobs/TvSEhpRFKFcE0Q0lnMwM/Highlight_Architecture_Private_network.jpg)

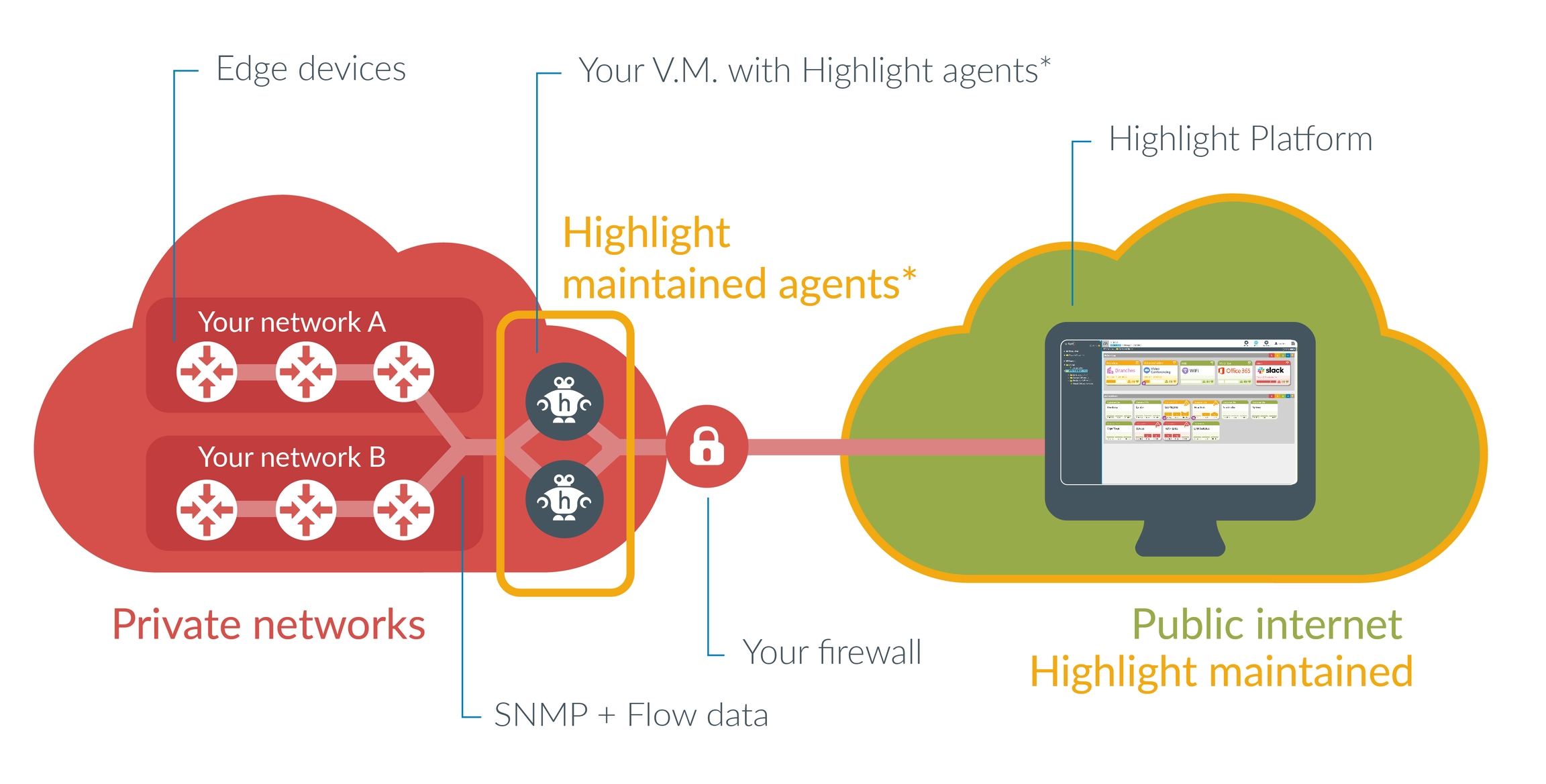

Highlight agents are used to collect data from a private network. Refer to the above section for an installation summary. Refer to the [architecture page](https://help.highlight.net/functionality/architecture) for infographics on public and hybrid networks.

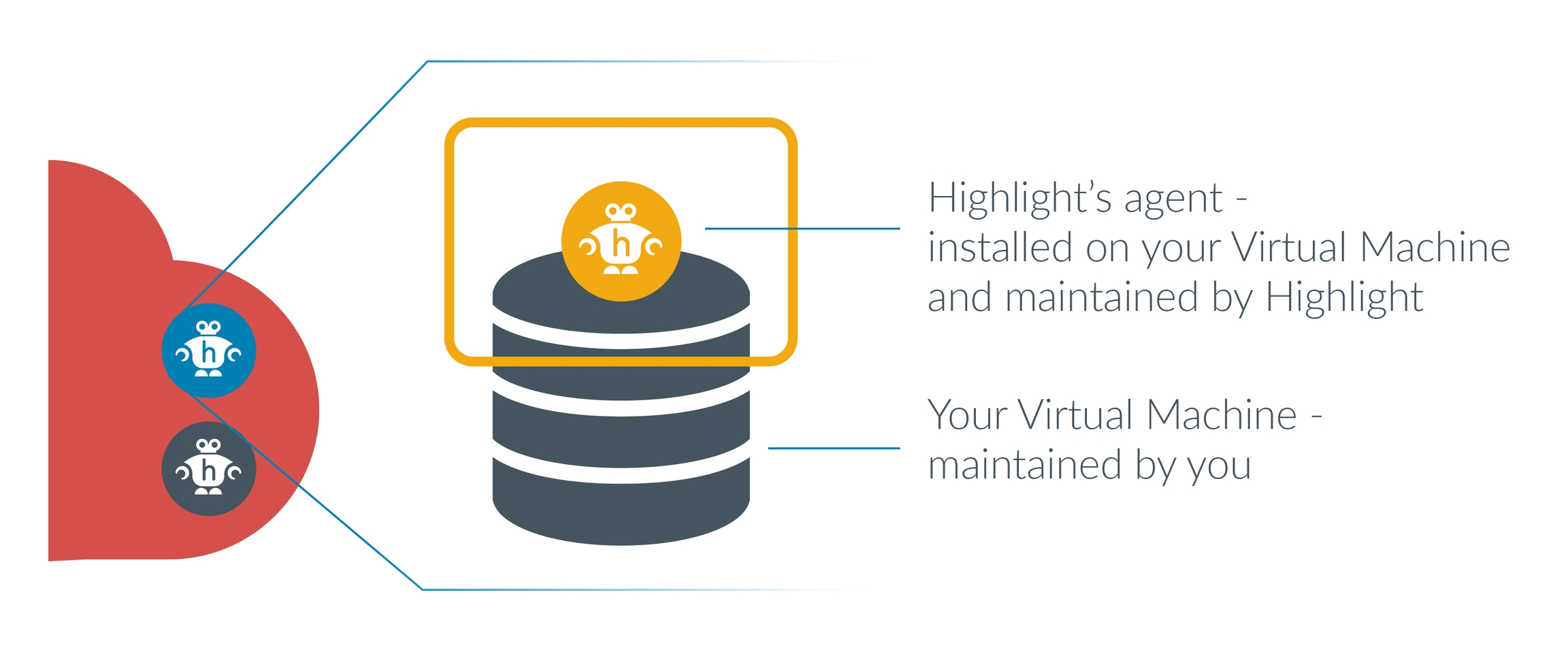

![Highlight architecture VM agent](https://content.gitbook.com/content/68Wb63XzG9guH74bkPEb/blobs/N71OEK9U2mSTwF58qwb2/Highlight_Architecture_VM_agent.jpg)

Highlight agents may also be used as a Flow Collector or for HTTPS testing.

### Using an Agent as a Flow Collector

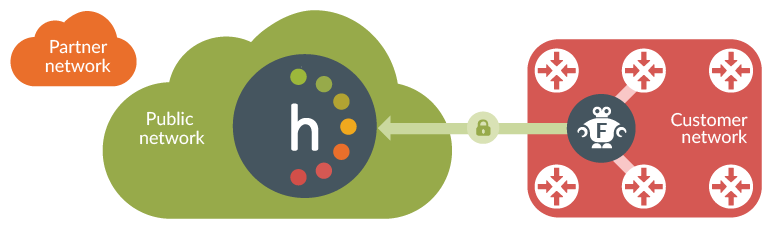

When used for Flow, a Highlight agent collects information from devices on a private network, then encrypts it, compresses it and passes it out of the network to the main Highlight server, as shown in this example:

![Example of Flow Collector by customer](https://content.gitbook.com/content/68Wb63XzG9guH74bkPEb/blobs/EoR3zWr1DNDOh0UNa3tl/Flow%20PerCustomer%20OneCustomer.png)

Due to the volume of data generated by devices enabled for flow, ideally an agent used as a Flow Collector should be located as near as possible to the source.

A single Flow Collector is suited to handle flows from about 50 devices. If a greater number of flows are expected, a second collector should be installed, ideally in a solution incorporating a load balancer. Please [contact us](https://help.highlight.net/getting-started/contact-us) for more information on load balancing for flow.

Having identified a suitable location for the server and checked the [system requirements](https://help.highlight.net/functionality/server-specs#server-specification), provision it.

{% hint style="warning" %}
Highlight agent software requires .NET 4.8 to be pre-installed, and we strongly recommend that Highlight agents are configured to synchronise their clock with a reliable time source. Documentation for the Windows Time service is available from [Microsoft's website](https://docs.microsoft.com/en-us/windows-server/networking/windows-time-service/windows-time-service-top).
{% endhint %}

***

## Steps to Install the Agent Server Software

{% stepper %}
{% step %}
Obtain an activation code by [creating a new agent](https://help.highlight.net/admin/agents#create_new_agent) in the appropriate Highlight folder, which will require Highlight Admin access.
{% endstep %}

{% step %}
Download the latest copy of the [Highlight Agent server software](https://support.highlight.net/downloads/HighlightAgentSetup.zip), which is also available from the Admin Agents page:

![Download option for Agent software](https://content.gitbook.com/content/68Wb63XzG9guH74bkPEb/blobs/KCZe6rbitFHQlbxhd4Sd/agent_software_download.png)
{% endstep %}

{% step %}

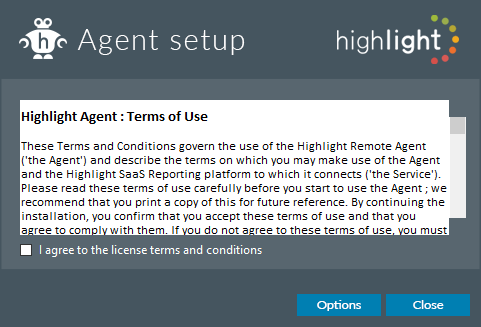

Extract the zip file to the required server, and run `Highlight.Agent.Bundle.Setup.exe`.

![Terms and conditions for Agent software](https://content.gitbook.com/content/68Wb63XzG9guH74bkPEb/blobs/7zDPIpFMa4Z2oSHy6Eov/agent_terms_and_conditions.png)
{% endstep %}

{% step %}

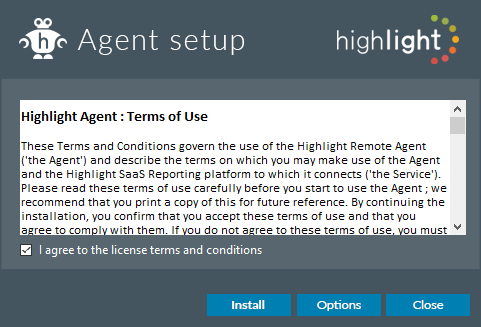

Agree to the licence terms and conditions.

![Agreed terms and conditions for Agent software](https://content.gitbook.com/content/68Wb63XzG9guH74bkPEb/blobs/QQUa6WbEgzwVfFqw7Jwl/agent_terms_and_conditions_agreed.png)
{% endstep %}

{% step %}
Click **Install**.

![Agent Authentication](https://content.gitbook.com/content/68Wb63XzG9guH74bkPEb/blobs/nOCu8fLhPfE7mgktAG4I/agent_authentication.png)
{% endstep %}

{% step %}

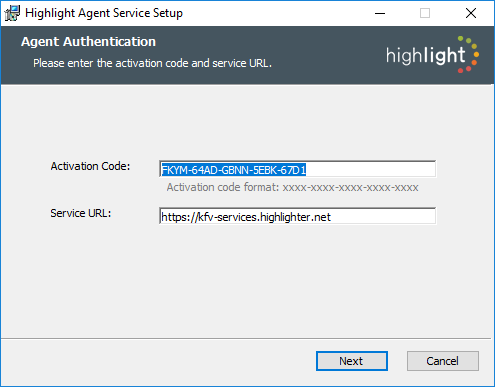

Enter the activation code (obtained when setting up the agent in Highlight) and the URL you use to access Highlight.

{% hint style="info" %}
The URL must begin with `https://`
{% endhint %}
{% endstep %}

{% step %}

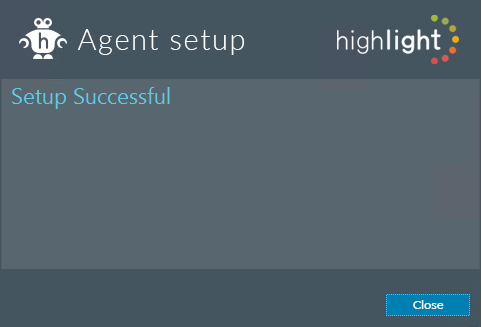

Click **Next**.

![Agent setup successful](https://content.gitbook.com/content/68Wb63XzG9guH74bkPEb/blobs/ylmjislFQp6RnmRMiXuB/agent_setup_success.png)
{% endstep %}

{% step %}
Click **Close**.
{% endstep %}

{% step %}
In Task Manager, ensure that all Highlight services are running. If they are not running, reboot the VM (restart the server).
{% endstep %}

{% step %}
We recommend that you also download and install Wireshark to improve supportability by Highlight.
{% endstep %}

{% step %}
Follow the steps to [assign the new agent](https://help.highlight.net/admin/agents#agent_selection) in the appropriate Highlight folders, which will require Highlight Admin access.
{% endstep %}
{% endstepper %}

***

## Steps to Confirm Agent Software is Operational

![Agent controller shortcut](https://content.gitbook.com/content/68Wb63XzG9guH74bkPEb/blobs/AEOKhMCDCA7VPnplmk49/agent_controller_shortcut.png)

{% stepper %}
{% step %}
Open the **Agent Controller** shortcut on the server Desktop.

![Agent awaiting authorization](https://content.gitbook.com/content/68Wb63XzG9guH74bkPEb/blobs/qUy92mZGUJ7JyrBKNAGd/agent_awaiting_authorization.png)
{% endstep %}

{% step %}

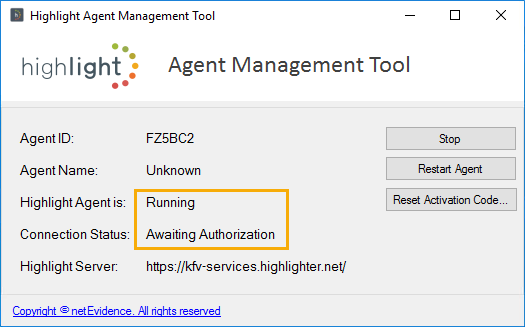

Note the agent is **Running** and the connection status is **Awaiting Authorization**. Once the agent has been enabled in Highlight, the connection status will change to **Connected**, and an agent name will appear as configured in Highlight.

![Agent connected](https://content.gitbook.com/content/68Wb63XzG9guH74bkPEb/blobs/pZEkrJGLhCnsoSI66brW/agent_connected.png)
{% endstep %}
